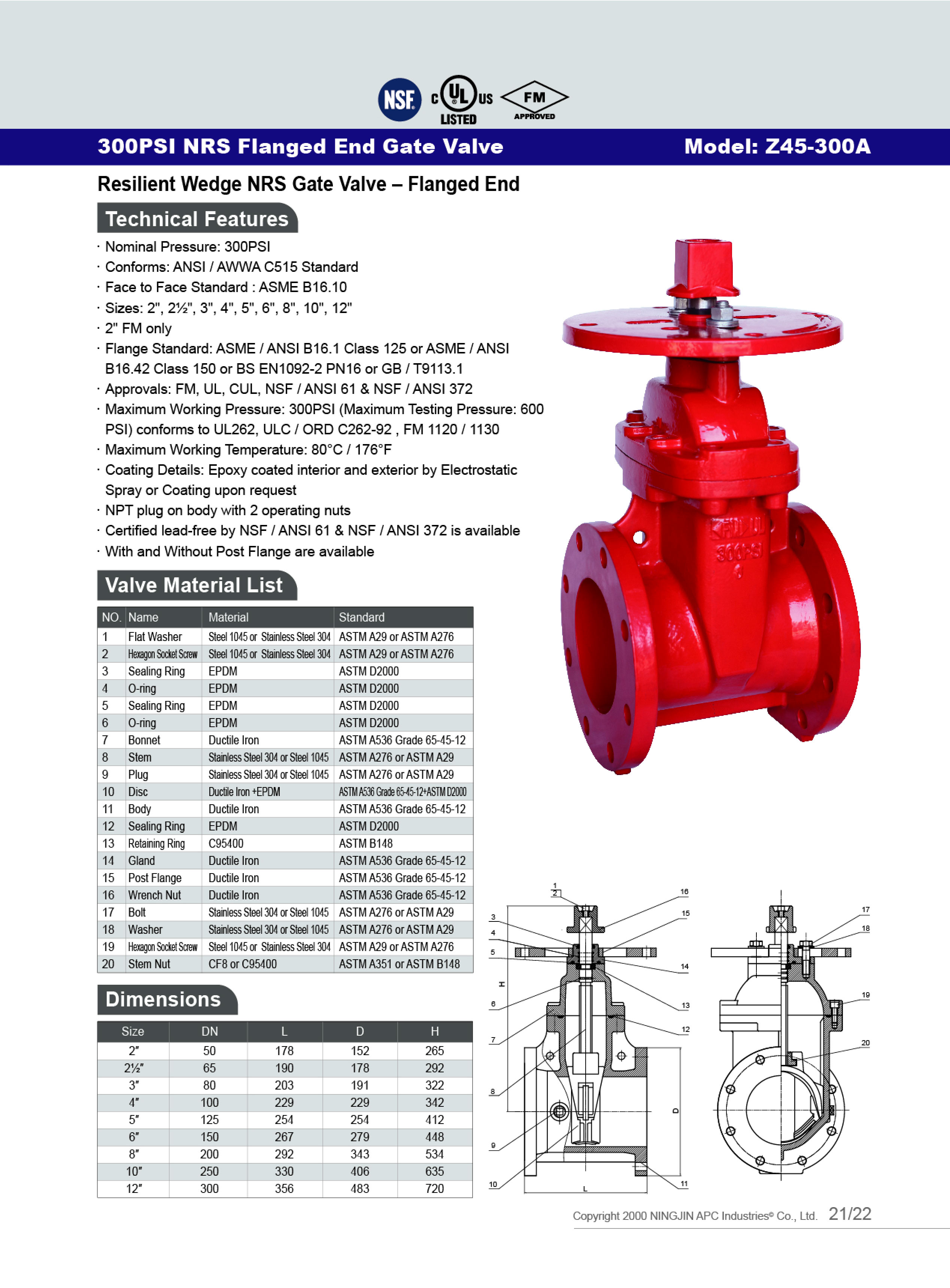

Technical Features：
●Nominal Pressure: 300PSI
●Conforms: ANSI 1 AWWA C515 Standard
●Face to Face Standard : ASME B16.10
●Sizes:2", 2%", 3",4", 5", 6", 8", 10", 12"
●2" FM only
●Flange Standard: ASME 1 ANSI B16.1 Class 125 or ASME I ANSI B16.42 Class 150 or BS EN1092-2 PN16 or GB / T9113.1
●Approvals: FM, UL, CUL, NSF 1ANSI 61 & NSF 1ANSI 372
●Maximum Working Pressure: 300PSI (Maximum Testing Pressure: 600PSI) conforms to UL 262, ULC 1 ORD C262-92 , FM 11201 1130
●Maximum Working Temperature: 80°C 1176°F
●Coating Details: Epoxy coated interior and exterior by Electrostatic Spray or Coating upon request
●NPT plug on body with 2 operating nuts
●Certified lead-free by NSF I ANSI 61 & NSF /ANSI 372 is available
●With and Without Post Flange are available
