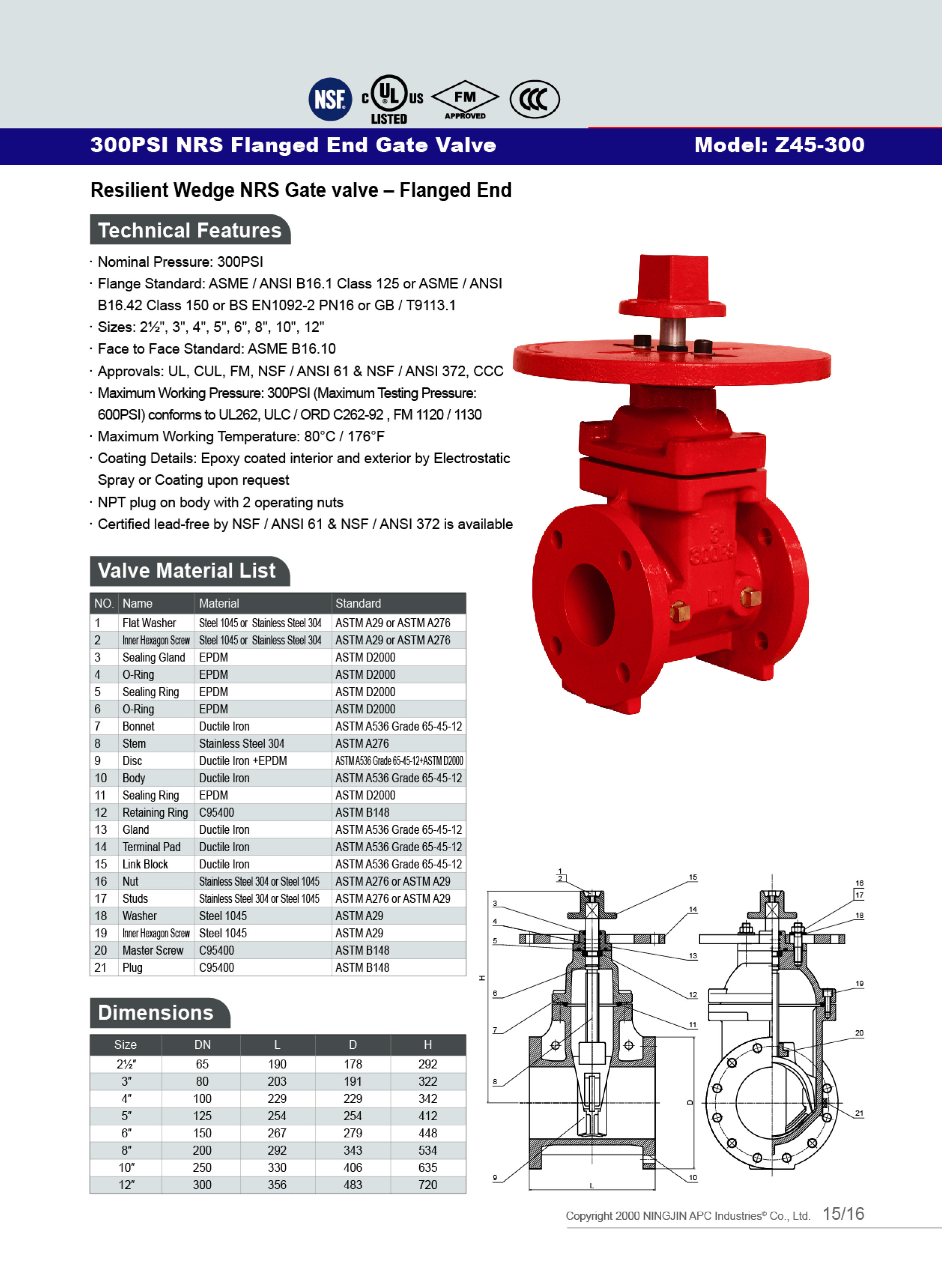

Technical Features：
●Nominal Pressure: 300PSI
●Flange Standard: ASME / ANSI B16.1 Class 125 or ASME / ANSI B16.42 Class 150 or BS EN1092-2 PN16 or GB / T9113.1
●Sizes: 2%", 3", 4", 5", 6",8", 10", 12"
●Face to Face Standard: ASME B16.10
●Approvals: UL, CUL, FM, NSF 1ANSI 61 & NSF IANSI 372, CCC
●Maximum Working Pressure: 300PSI (Maximum Testing Pressure:600PSI) conforms to UL 262, ULC/ ORD C262-92 , FM 1120/ 1130
●Maximum Working Temperature: 80°C/ 176°F
●Coating Details: Epoxy coated interior and exterior by Electrostatic Spray or Coating upon request
●NPT plug on body with 2 operating nuts
●Certifed lead-free by NSF /ANSI 61 & NSF / ANSI 372 is available
