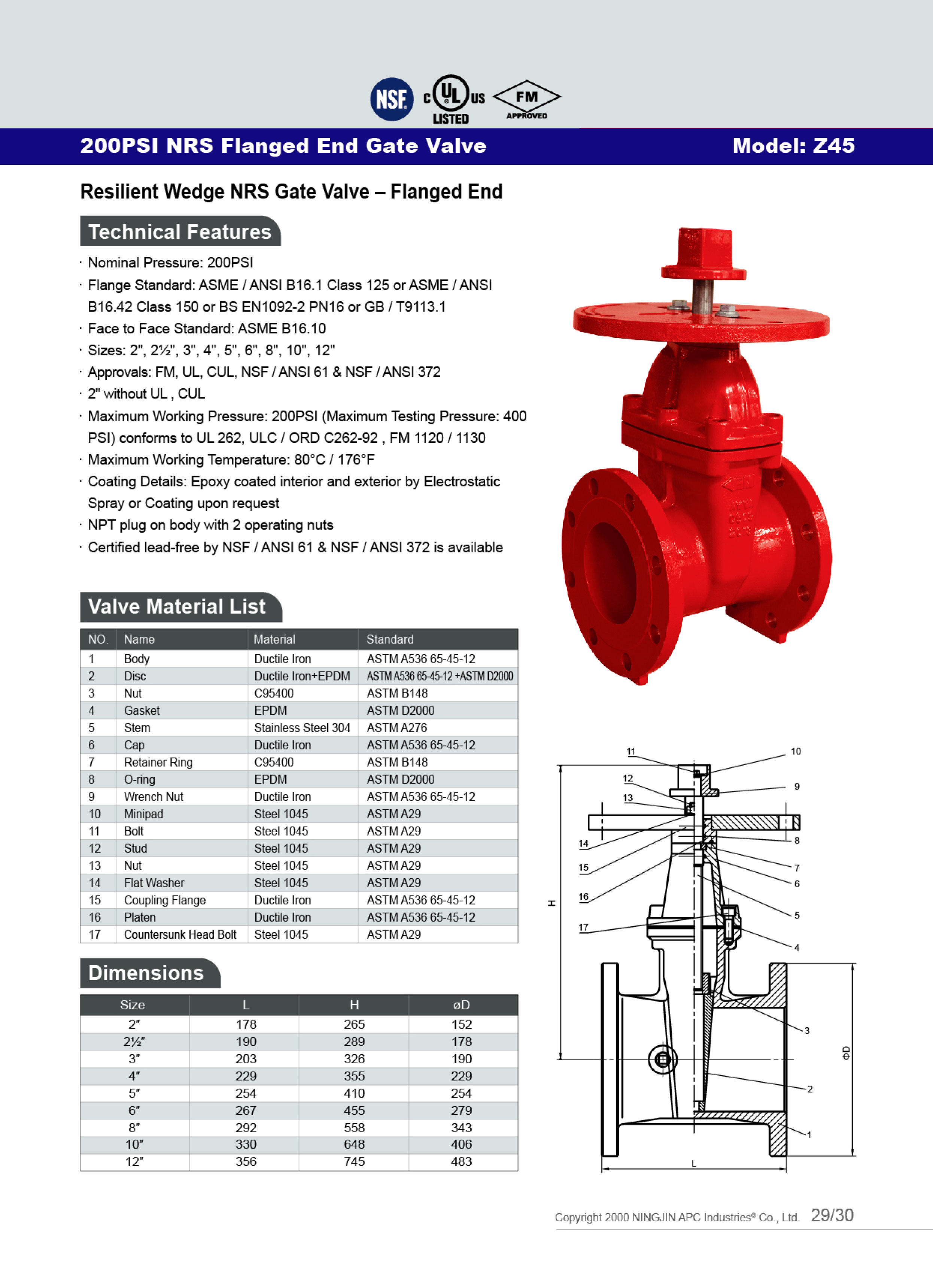

Technical Features：
●Nominal Pressure: 200PSI
●Flange Standard: ASME / ANSI B16.1 Class 125 or ASME / ANSI B16.42 Class 150 or BS EN1092-2 PN16 or GB 1 T9113.1
●Face to Face Standard: ASME B16.10
●Sizes:2", 2%", 3", 4",5", 6", 8", 10", 12"
● Approvals: FM, UL, CUL, NSF 1ANSI 61 & NSF IANSI 372
●2" without UL, CUL
●Maximum Working Pressure: 200PSI (Maximum Testing Pressure: 400PSI) conforms to UL 262, ULC 1 ORD C262-92 , FM 1120/ 1130
●Maximum Working Temperature: 80°C1 176°F
●Coating Details: Epoxy coated interior and exterior by Electrostatic Spray or Coating upon request
●NPT plug on body with 2 operating nuts
●Certifed lead-free by NSF IANSI 61 & NSF 1 ANSI 372 is available
